The PW2309 uses advanced trench technology to provide excellent RDS(ON), low gate charge
and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection
or in other Switching application.
FEATURES
VDS = -60V, ID = -3A
RDS(ON) < 180mΩ @ VGS=-10V
Available in a 3-Pin SOT23-3 Package
Application
Battery protection
Load switch
Uninterruptible power suppl

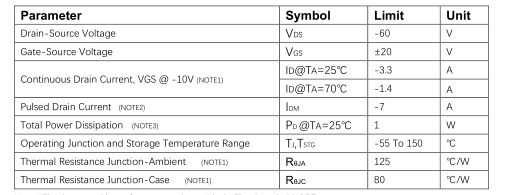

Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Note 1.The data tested by surface mounted on a 1 inch 2 FR-4 board with 2OZ copper.
Note 2.The data tested by pulsed , pulse width ≦ 300us , duty cycle ≦ 2%
Note 3.The power dissipation is limited by 150℃ junction temperature
