PW2308无锡平芯微，技术支持，现货
- 2020-11-04 09:49:00
- admin 原创
- 863
The PW2308 uses advanced trench technology to provide excellent RDS(ON), low gate charge
and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection
or in other Switching application.
FEATURES
VDS =60V, ID =5A
RDS(ON) < 38mΩ @ VGS=10V
Available in a 3-Pin SOT23-3 Package
Application
Battery protection
Load switch
Automative lighting

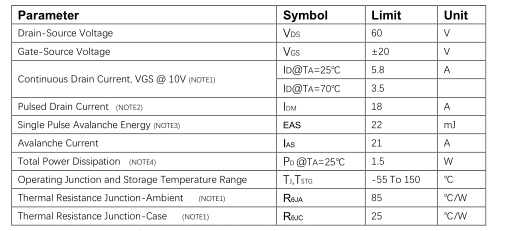

Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Note 1、 The data tested by surface mounted on a 1 inch2 FR-4 board with 2OZ copper.
Note 2、 The data tested by pulsed , pulse width ≦ 300us , duty cycle ≦ 2%
Note 3、 The EAS data shows Max. rating . The test condition is VDD=25V,VGS=10V,L=0.1mH,IAS=21A
Note 4、 The power dissipation is limited by 150℃ junction temperature
