The PW2324 uses advanced trench technology to provide excellent RDS(ON), low gate charge
and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection
or in other Switching application.
FEATURES
VDS =100V, ID =3.7A
RDS(ON) < 240mΩ @ VGS=10V
Available in a 3-Pin SOT23-3 Package
Application
Battery protection
Load switch
Uninterruptible power supply

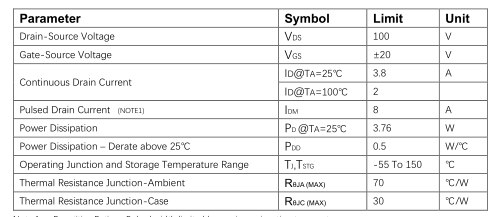

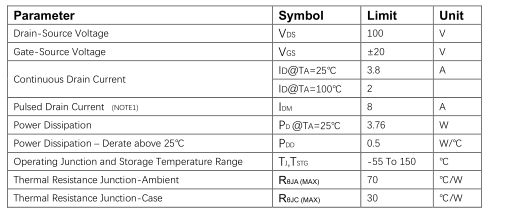

Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Note 1、 Repetitive Rating : Pulsed width limited by maximum junction temperature.
