The PW2202 is silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar
Technology which reduce the conduction loss, improve switching performance and enhance the
avalanche energy. The transistor can be used in various power switching circuit for system
FEATURES
VDS =200V, ID =2A
RDS(ON) < 1.8Ω @ VGS=10V

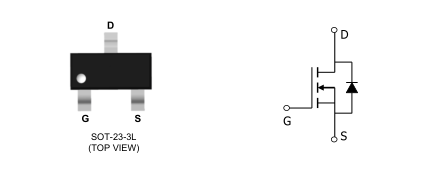

Available in a 3-Pin SOT23-3 Package
Application
LED dimming
Emergency lamp

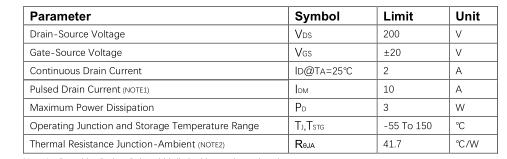

Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Note 1、Repetitive Rating: Pulse width limited by maximum junction temperature.
Note 2、Surface Mounted on FR4 Board, t ≤ 10 sec
