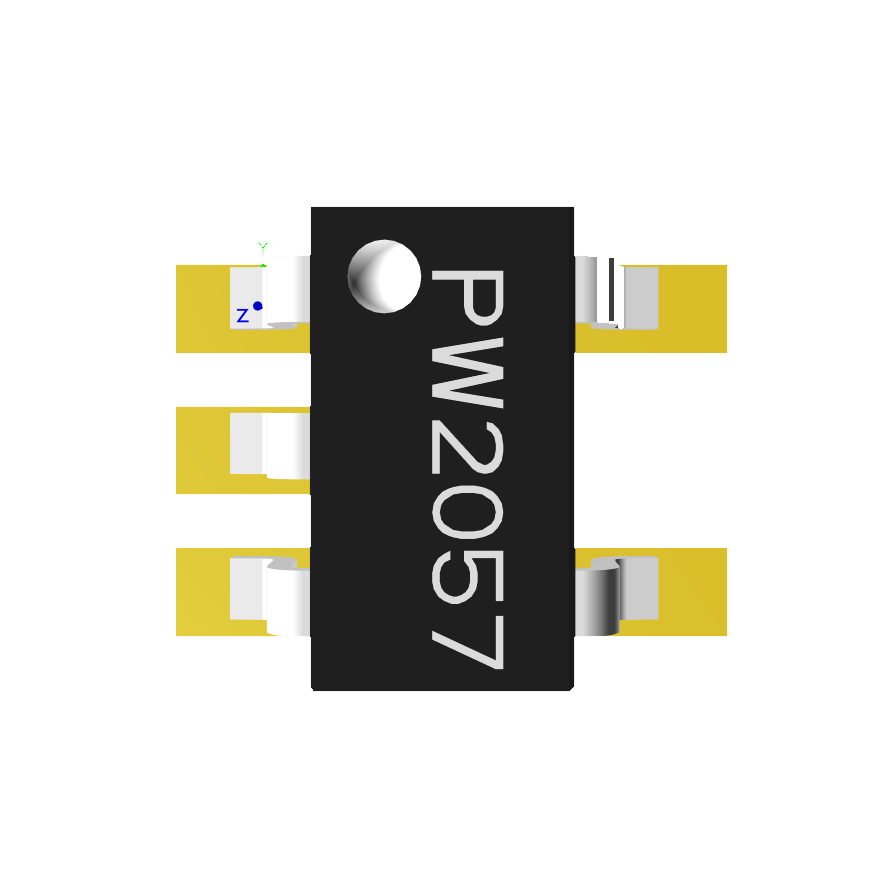

锂电池降压3.3V,1.8V,1.2V芯片,PW2057代理
详情
GENERALDESCRIPTION
The PW2057 is a constant frequency, currentmode step-down converter. The device integrates a main switch and a synchronousrectifier for high efficiency without an external Schottky diode. It is idealfor powering portable equipment that runs from a single cell Lithium-Ion (Li+)battery. 100% duty cycle capability extends battery life in portable devices,while the quiescent current is 200μA with no load, and drops to <1μA in shutdown.
FEATURES
l High Efficiency: Up to 95%
l 1.0MHz Frequency Operation
l 2.2V to 5.5V Input Voltage Range
l Current Mode Operation for ExcellentLine and Load Transient Response
l Low Quiescent Current: 200μA
l Output Voltage: 3.3V， 1.8V， 1.2V
l Automatic PWM/PFM Mode Switching
l No Schottky Diode Required
l Short-Circuit Protection
l Shutdown Quiescent Current: < 1μA
l Low Profile SOT-23-5L Package(lead-free)
APPLICATIONS
l Digital cameras and MP3
l Palmtop computers / PDAs
l Cellular phones
l PC cards
l Portable media players
