代理FR9702降压转换器芯片
详情
|
Description The FR9702 is a monolithic step-down switch mode converter with a built-in power MOSFET. It achieves 1.8A output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limit and over temperature protection. The FR9702 requires a minimum number of available standard external components. The FR9702 is available in SOT23-6, TSOT23-6, MSOP-10 and SOP-8 (Exposed Pad) packages. |
代理商：深圳市夸克微科技 郑先生 ：13528458039 QQ 2867714804
|

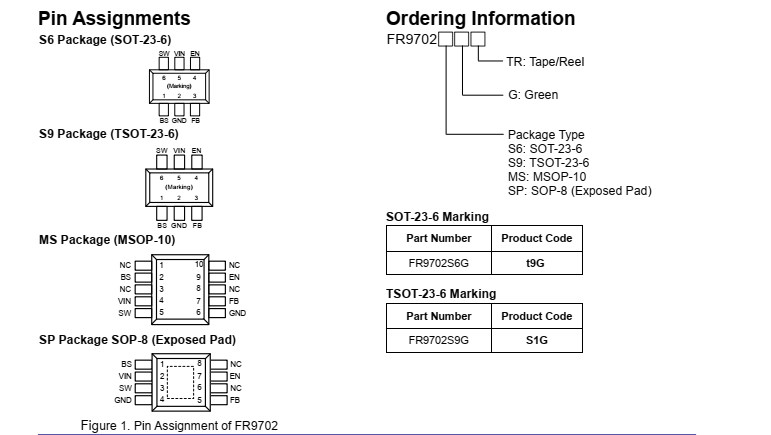

Features ● 1.8A Output Current ● 180mΩ Internal Power MOSFET Switch ● Stable with Low ESR Output Ceramic Capacitors ● Up to 92% Efficiency ● Fixed 1.4MHz Frequency ● Current Mode Operation ● Over-Temperature Protection with Hiccup-Mode ● Cycle-by-Cycle Over Current Protection ● Wide 4.5V to 23V Operating Input Range ● Output Adjustable from 0.805V to 15V ● 10μA Shutdown Current ● Miniature Packages: SOT-23-6, TSOT23-6, MSOP-10 and SOP-8 (Exposed Pad) |
|
Applications ● Battery Charger ● Pre-Regulator for Linear Regulator ● OLPC, Netbook ● Distributed Power System ● WLED Driver |
