代理天钰FP6715,1A同步升压IC芯片
详情
|

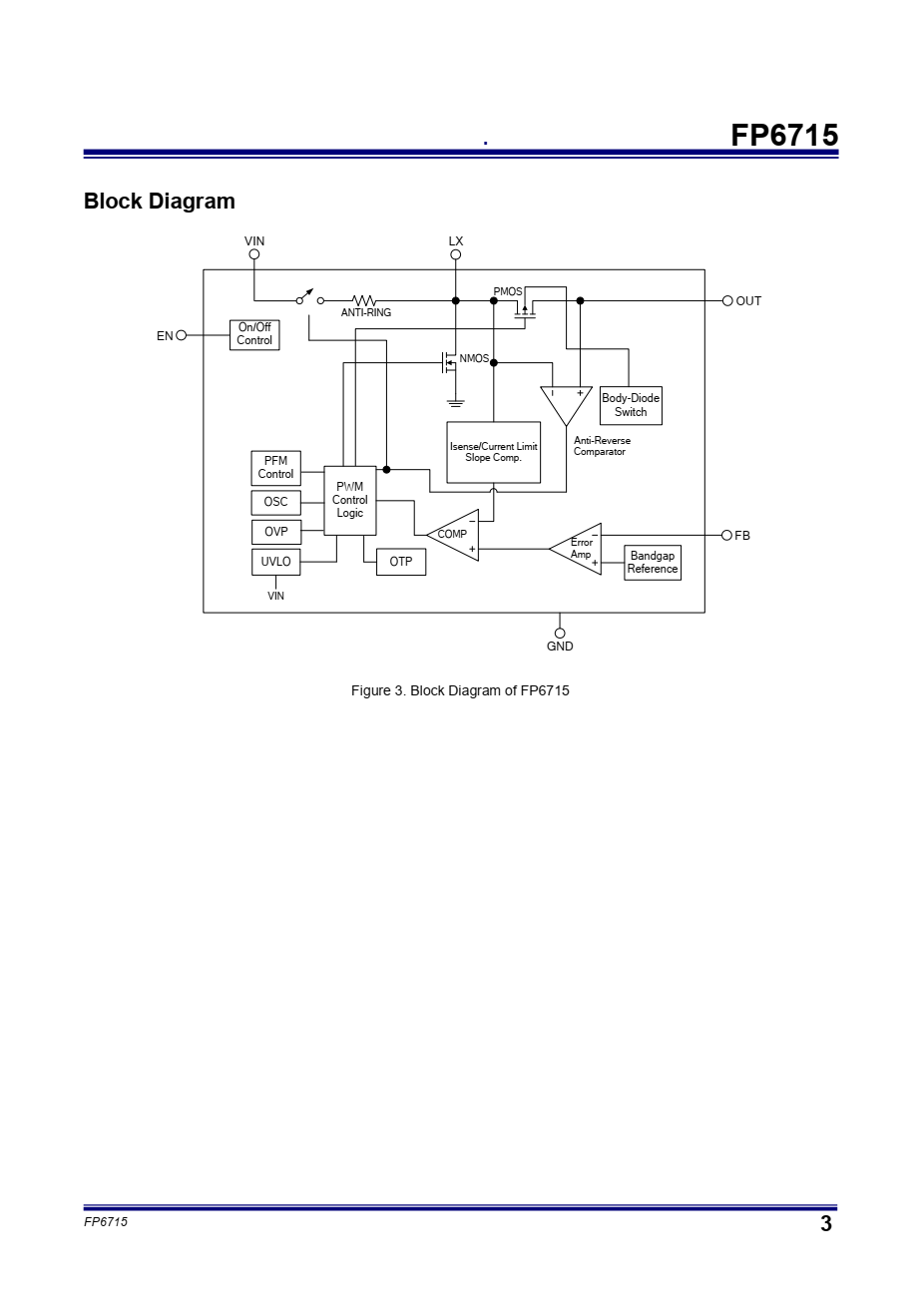

Description The FP6715 is a high efficiency, fixed frequency 550KHz, current mode PWM boost DC/DC converter which could operate battery such as input voltage down to 2.5V. The converter output voltage can be adjusted to a maximum of 5.25V by an external resistor divider. Besides the converter includes a 0.08Ω N-channel MOSFET switch and 0.12Ω P-channel synchronous rectifier. So no external Schottky diode is required and could get better efficiency near 93%. The converter is based on a fixed frequency, current mode, pulse-width-modulation PWM controller that goes automatically into PSM mode at light load. When converter operation into discontinuous mode, the internal anti-ringing switch will reduce interference and radiated electromagnetic energy. The FP6715 is available in a space-saving SOT-23-6 package for portable application. |
|

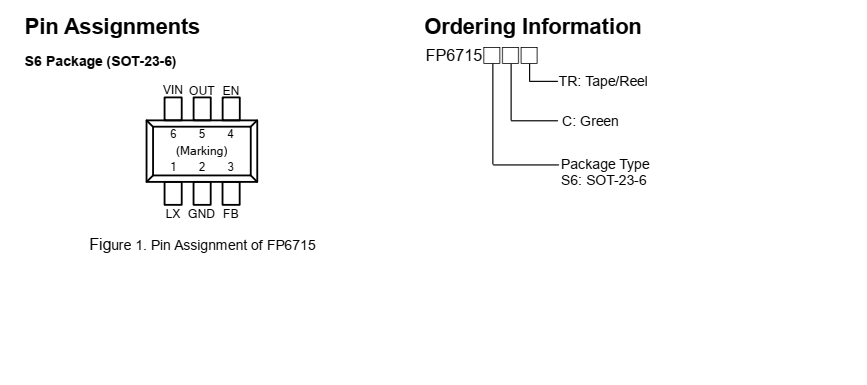

Features High Efficiency up to 93% Low R DS (ON) Integrated Power MOSFET NMOS 80mΩ / PMOS120mΩ Wide Input Voltage Range: 2.5V to 5.5V Fixed 550KHz Switching Frequency Low-Power Mode for Light Load Conditions ±2.0% Voltage Reference Accuracy PMOS Current Limit for Short Circuit Protection Low Quiescent Current Output Ripple under 200mV. (Scope Full Bandwidth) Fast Transient Response Built-In Soft Start Function Over-Temperature Protection with Auto Recovery Output Overvoltage Protection Space-Saving SOT-23-6 Package |
|

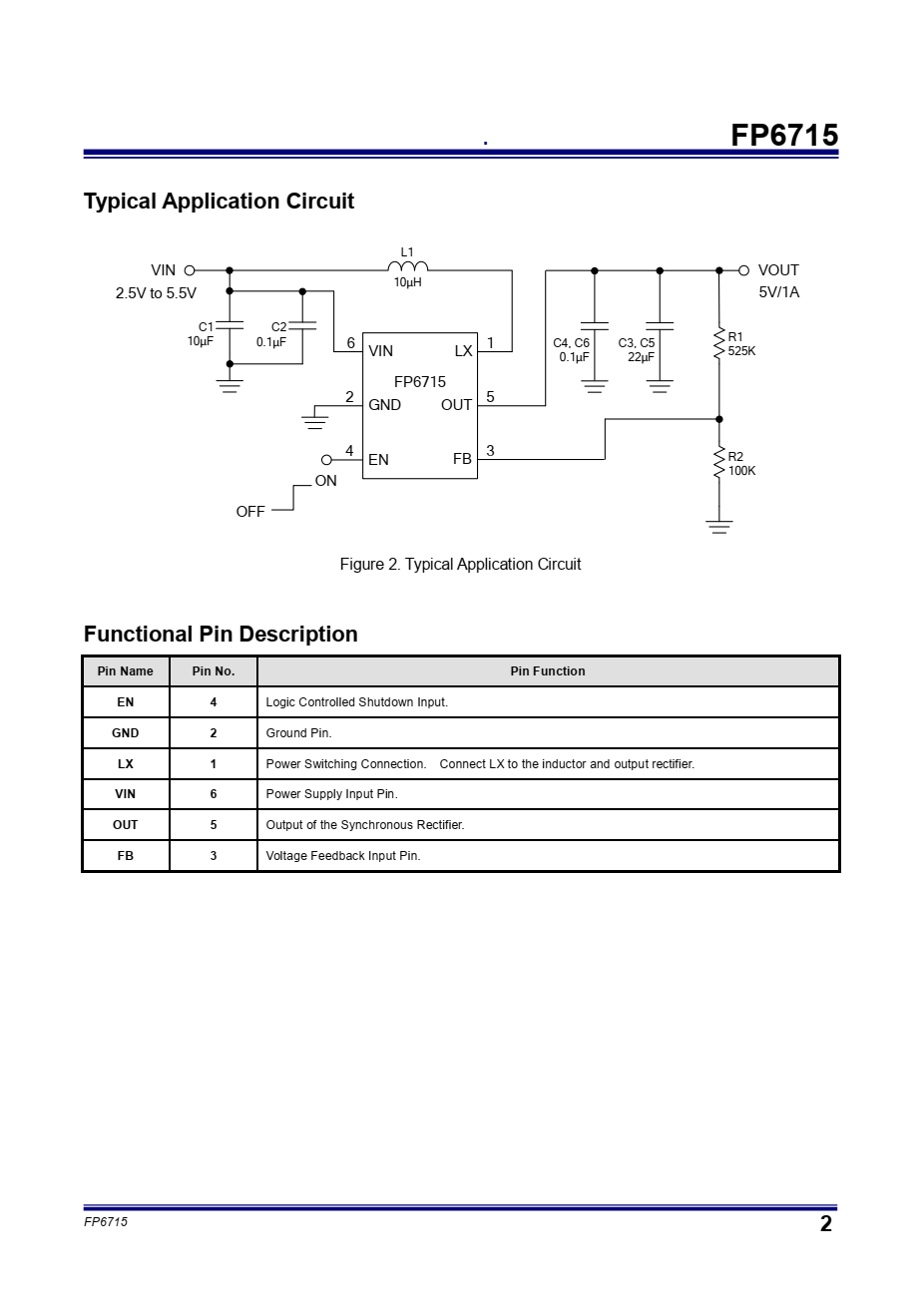

Applications Portable Power Bank Wireless Equipment Handheld Instrument GPS Receiver |
代理商：深圳市夸克微科技 郑先生 ：13528458039 QQ 2867714804
FP6715 规格书下载 - [ 芯片模块网，www.icmkw.com 规格书，PCB文件，模块板资料网站，让芯片更简单】
