Description
The FP6606C is a simplified USB Power Delivery 3.0 protocol controller. It also integrated functions for HiSilicon Fast Charging Protocol (FCP) and Qualcomm Quick Charge 2.0/3.0.
The FP6606C monitors the CC pin to detect a USB Type-C attach/detach. It is capable providing output voltage of 5V to 20V. The FP6606C implements VBUS detection and discharge for the implementation of compliant connection ports. The protection features include over-voltage (D+/D-, CC1/CC2).
● Supports USB Type-C and USB PD 3.0(simplified)
-- 5V to 20V VBUS Source Only
-- CC1/CC2 Source Terminator 3A
● Supports HiSilicon Fast Charging Protocol (FCP)
● Supports Qualcomm ® Quick ChargeTM 2.0/3.0 Class A
● Automatically Selects FCP and QC2.0/3.0 Protocols
● VBUSC Discharge Function

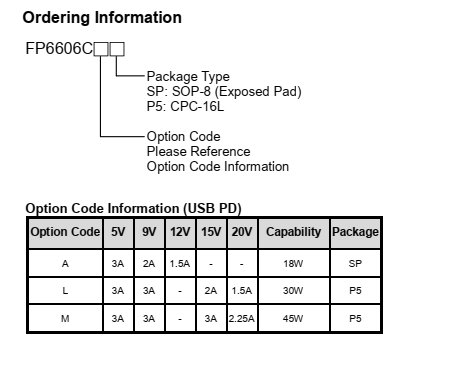

● SOP-8 Exposed Pad and CPC-16L Packages
Applications
● Wall-Adapter
● Car Charger
● Power Strip
● USB Power Output Port
The FP6606C is a simplified USB Power Delivery 3.0 protocol controller. It also integrated functions for HiSilicon Fast Charging Protocol (FCP) and Qualcomm Quick Charge 2.0/3.0.
The FP6606C monitors the CC pin to detect a USB Type-C attach/detach. It is capable providing output voltage of 5V to 20V. The FP6606C implements VBUS detection and discharge for the implementation of compliant connection ports. The protection features include over-voltage (D+/D-, CC1/CC2).
Features
● VDD Supply Voltage: 3.2V to 6.8V● Supports USB Type-C and USB PD 3.0(simplified)
-- 5V to 20V VBUS Source Only
-- CC1/CC2 Source Terminator 3A
● Supports HiSilicon Fast Charging Protocol (FCP)
● Supports Qualcomm ® Quick ChargeTM 2.0/3.0 Class A
● Automatically Selects FCP and QC2.0/3.0 Protocols
● VBUSC Discharge Function
● SOP-8 Exposed Pad and CPC-16L Packages
Applications
● Wall-Adapter
● Car Charger
● Power Strip
● USB Power Output Port
