PW1555 is a programmable current limit switch with input voltage range selection and output
voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel FET helps to
reduce power loss during the normal operation. Programmable soft-start time controls the slew rate
of the output voltage during the start-up time. Independent enable control allows the complicated
system sequencing control. It integrates the over-temperature protection shutdown and
autorecovery with hystersis.
This IC along with small DFN3X3-10 footprint provides small PCB area application.
FEATURES
⚫ Wide Input Voltage Range from 2.5V to
15V with surge up to 30V
⚫ Extremely Low RDS(ON) for the Integrated
⚫ Protection Switch: 40 mΩ
⚫ Programmable Soft-Start Time
⚫ Programmable Current Limit
⚫ Short-circuit Protection
⚫ Selectable Input Range and Clamping
Output Voltage Threshold.
⚫ Enable Interface Pin
⚫ Thermal Shutdown Protection & Auto
Recovery
⚫ RoHS Compliant and Halogen Free
⚫ Compact package: DFN3X3-10
APPLICATIONS
⚫ Server
⚫ Service PC
⚫ Notebook PC
⚫ pad Mini

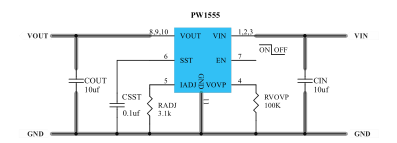

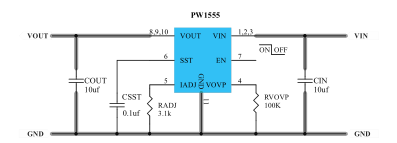

TYPICAL APPLICATION CIRCUIT
VOVP ：
1,Low ： Vout ： 3.6V ， Over 4V ；
2,High ： Vout ： 5V ， Over 6V ；
3,Open ： Vout ： 12V ， Over 14V
ILIM (A)= 11 / RADJ (KΩ) 。 RADJ=3.1K ， ILIM=3.5A
The minimum current limit is 1A. Current limit beyond 5A is not recommended.
